1.5. Appendix: Monte Carlo C++ Program¶

Where to run the C++ code

You can run this exercise on noto.epfl.ch

Open noto.epfl.ch and then wait until the session is initalized.

In the left panel, create a new folder and navigate to it.

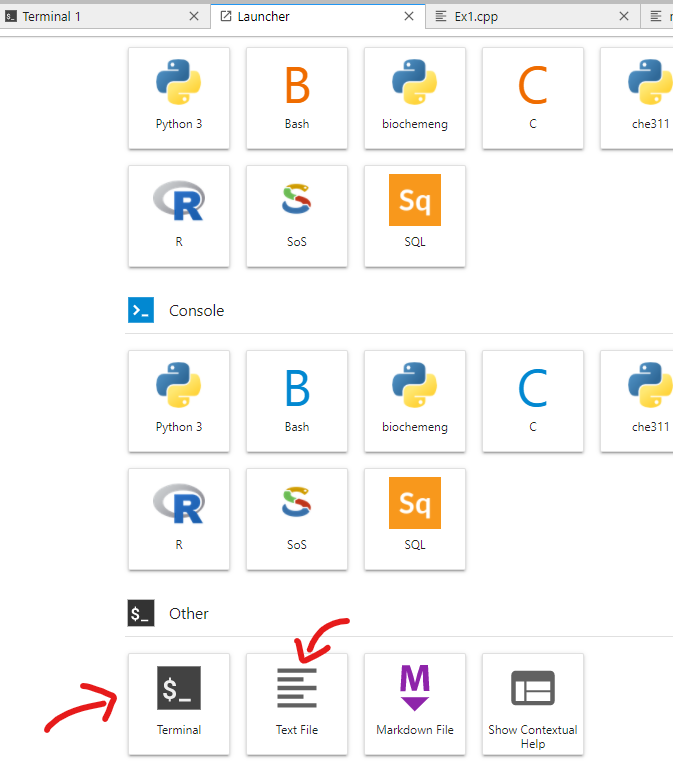

Then use the launcher to open both a terminal and a new file. jupyterlab

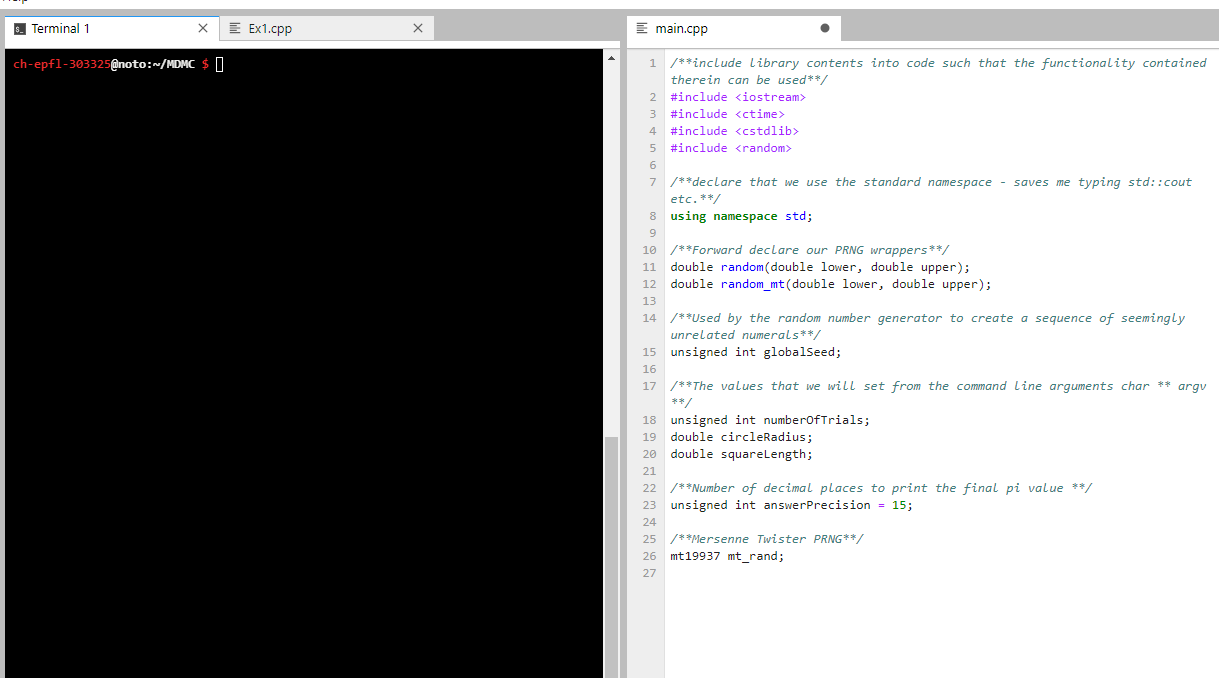

You can use the tabs to switch between them or place them alongside each other by dragging one of the tabs to the left.

jupyterlabterminal

Remember to save the file. The files will be saved on your personalized EPFL storage.

This section will serve two purposes: to (re-)familiarise you with the C++ programming language, and also to guide you through the implementation of a \(\pi\)-estimation program using the MC method. In case that you are not familiar with C++ we recommend working with the python version.

In a directory of your choosing, create a main.cpp file and open it in a text-editor. An entry-point for where your program should execute must now be created. In your main.cpp file add the following:

#include <iostream>
#include <time.h>
#include <cstdlib>

double random(double lower, double upper);

unsigned int globalSeed;
unsigned int successfulHits = 0;
unsigned int numberOfTrials;
double circleRadius;
double squareLength;
unsigned int answerPrecision = 15;

using namespace std;

int main(int argc, char ** argv) {
    return 0;
}

This code will form the base of your MC method. The variables numberOfTrials, circleRadius and squareLength are necessary for the \(\pi\) estimation. The variable globalSeed is a requirement for our pseudo-random number generator while the variable answerPrecision is simply to ensure you print out an appropriate number of decimals for the estimation. You can find a detailed description of libraries (iostream, time, cstdlib), forward declaration, main functions, command-line arguments, namespaces, global variables and variable scope in Section 1.5.2. Below the main function, insert the following code.

double random(double lower, double upper) {
    double zero_to_one = (double) rand() / RAND_MAX;
    return (lower + (upper * zero_to_one));
}

This function returns a uniformly distributed random number. It makes use of the PRNG rand(). The seed for this PRNG must also be initialised so insert the following code within your main function:

srand(time(NULL));

For further information about seeds, using PRNGs and the functions srand() and time(), see Section 1.5.2.2.2. Your goal is to estimate the value of \(\pi\) using the circle and square method, thus the dimensions of the circle and square must be parsed into your program, as well as the number of trials you wish to perform this estimation with. This is achieved using the functions atoi() and atof(). Place the following early within your main function:

numberOfTrials = atoi(argv[1]);
circleRadius = atof(argv[2]);
squareLength = atof(argv[3]);

For more information about the functions atoi and atof, see Section 1.5.2.3. You may also wish at this point to print out these variables, to ensure that the the correct values are being passed into the program. This can be achieved using the following example:

cout << "Number of Trials" <<  numberOfTrials << endl;

The cout object is used to print a character stream to the terminal, while the endl function flushes the stream. For further information about using standard output within C++, see Section 1.5.2.4. You can now begin with the MC method. Enter the following into your main.cpp file in an appropriate place (i.e, once all variables are parsed, and the seed is set):

    for (int i = 0; i < numberOfTrials; i++) {
        // 1) Generate a new point (x,y) within the square.
        // 2) Test whether this new point resides within the circle.
        //      2.1) If above is true, increase the hit counter.
    }

    cout << "Successful hits: " << successfulHits << endl;
     double piEstimation = 0;
    //piEstimation = ??
    cout.precision(answerPrecision);
    cout << "Pi estimate: " << fixed << piEstimation << endl;
    return 0;

You may notice that the code is commented. This is intentional, as you must now modify this section of the code to produce a functioning \(\pi\) estimation program. Follow the steps in the comments and ask for help if you are stuck.

1.5.1. Compiling Your C++ Program¶

To compile the program, navigate your terminal focus to the directory which contains main.cpp, and type the following:

g++ -std=c++11 main.cpp -o pi.x

This will produce an executable file called pi.x in your current directory. You can execute this program using the following command-line arguments:

./pi.x NumberOfTrials SizeOfCircle SizeOfSquare

1.5.2. C++ Glossary¶

1.5.2.1. Libraries, Forward Declaration, Main Function, Command-line Arguments, Namespaces, Global Variables and Variable Scope¶

1.5.2.1.1. Libraries¶

Libraries are pre-compiled code that contain useful functions for a program to use. The iostream, time and C standard general utility (cstdlib) libraries are included through the #include pre-process directive. The #include pre-process directive tells the compiler that you wish to include the contents of <library> into your source file before it is converted to machine code, thus enabling you to use the aforementioned functions in your program.

1.5.2.1.2. Forward Declaration¶

The double random(double lower, double upper) declaration is what is known as a forward-declaration of a function and serves to inform the compiler that this function is defined somewhere within your code.

1.5.2.1.3. Namespaces¶

The namespace std is the namespace in which the C++ standard library functions are declared (standard input, standard output, random, string, regex… etc). Namespaces are simply structures to prevent function name conflicts.

1.5.2.1.4. Main Function¶

The main function is a special function which defines the point at which your program begins execution.

1.5.2.1.5. Command-line Arguments¶

The parameters argc and argv are special variables which are passed to the program from the command-line as arguments. The variable argc is an integer, while the variable argv is a pointer, which is an address to some useful data within your computers memory. In this case argc is simply a count of the number of arguments passed to the program, while argv points to an 2-dimensional array of characters, i.e the passed arguments themselves. It is worth noting that arrays in C/C++ are represented in their true form: a pointer to the beginning of the memory block at which the array starts. Thus, individual characters passed to the program as command-line arguments can be accessed by argv[i][j], where i is the index of the string being passed, and j is the index of an individual character within the aforementioned string.

1.5.2.1.6. Global Variables and Variable Scope¶

Variables can optionally be defined with access modifiers through the keywords public, protected and private. These access modifiers change the scope of a variable, i.e from where this variable can be acccessed within the program. If no access specifier is present, as is the case for the variables numberOfTrials, circleRadius and squareLength, then the access specifier private is inferred. The public specifier infers that the associated variable is accessible throughout the entire program. The private specifier limits the scope of the variable to that of the class in which it is defined, while the protected modifier performs the same role except that it is also accessible from derived classes. In this example you have only defined one class/file and hence it is perfectly fine for you to not label the variables with an access modifier. In contrast, variables defined within functions are only accessible within that function.

1.5.2.2. Generating Random Numbers and PRNG Seeds¶

1.5.2.2.1. Generating Random Numbers¶

The <random> library provides many ways to generate pseudo-random numbers but are overly complicated for your purpose. Instead, you use the function rand() defined within the cstdlib library. The function rand() is a pseudo-random number generator (PRNG) and returns a uniformly distributed value between 0 and RAND_MAX. In this implementation, the function rand() is wrapped with another function random(double lower, double upper). Within this new function rand() is first modified slightly to create a uniformly distributed random number within the range [0, 1], and then this is applied to the lower and upper parameters to create the desired domain distribution within the bounds [lower, upper].

1.5.2.2.2. PRNG Seeds¶

The seed is an integer which rand() uses to generate a sequence of pseudo-random numbers. Using the same seed will generate the same pseudo-random number sequence. Since you are building a stochastic model, it is most useful that the seed is unique every time your program is run. The function srand(int) sets the seed for the rand() PRNG and is defined in the <cstdlib> library. Here you pass to srand(int) another function time(time_t *) which is defined in the ctime library <ctime>. The argument of time(time_t *) allows you to calculate the time passed between now and the time passed in to the function, through the time_t type. However, you envoke the special case of time(timer_t *), such that if the argument timer_t * is NULL, then this function returns the number of seconds since the Epoch (defined as 00:00 hours, Jan 1, 1970 UTC). This number is a suitable seed for your purposes, since your program should execute in a time period longer than one second, hence your sequence of pseudo-random numbers should be unique upon each calculation.

1.5.2.3. Library Functions¶

The function atoi(const char *) retrieves an integer from an input string, while the function atof(const char *) performs the same but for a floating point. These functions are defined in the <cstdlib> library you import at the beginning of your code.

1.5.2.4. Standard Output¶

The cout variable is an object of class ostream. This represents the standard output stream for narrow characters (and corresponds to the C stream stdout). The standard output stream is the default destination of characters determined by the enviroment, in this case, the terminal. The operator << is an overloaded operator to provide the functionality of pushing characters and strings to the stream buffer. Finally, the endl function simply inserts a new line character and flushes the stream. In other words, the line cout << "Hello" << endl; prints the message “Hello” to your terminal.
